Equipment Introduction

1.The feed transfer system is equipped with multiple sets of suction cups. The forward and backward movement of the transfer mode is driven by a reduction motor driving a synchronous belt, and the up and down movement is driven by a reduction motor driving the gear and rack to reciprocate on the guide rail

2.The feeding conveyor table is equipped with a clamp centering device, and the servo motor pushes the material into place

3.Four-roller installation type, the upper roller body is fixed as the main driving force, the lower roller body moves up and down, and the roller bodies on both sides move up and down obliquely. The two ends of the lower roller body and the roller bodies on both sides are synchronously pushed by a lift connected by a connecting rod. The lift is driven by a servo motor to accurately control the travel distance; the upper roller is driven by the servo motor and the reducer to drive the lower roller gear to rotate

Equipment technical parameters

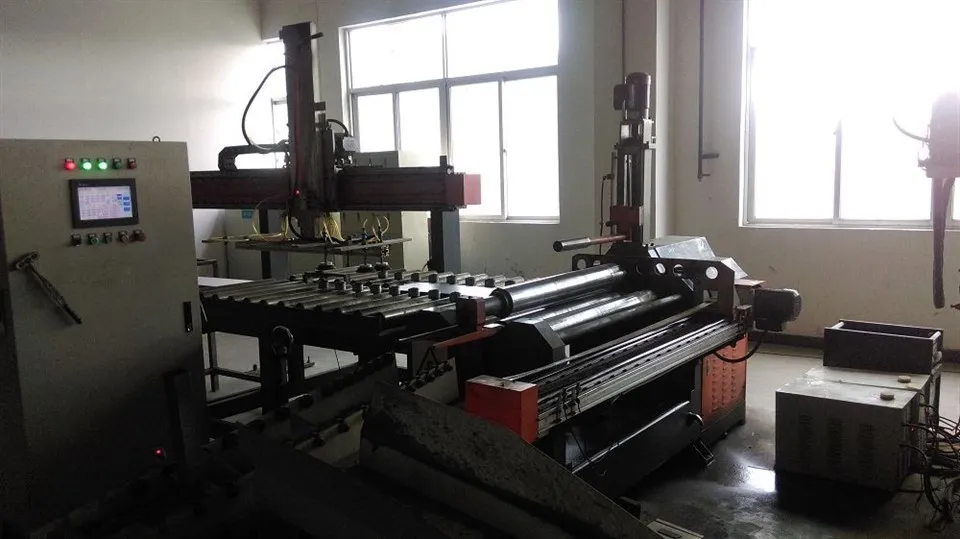

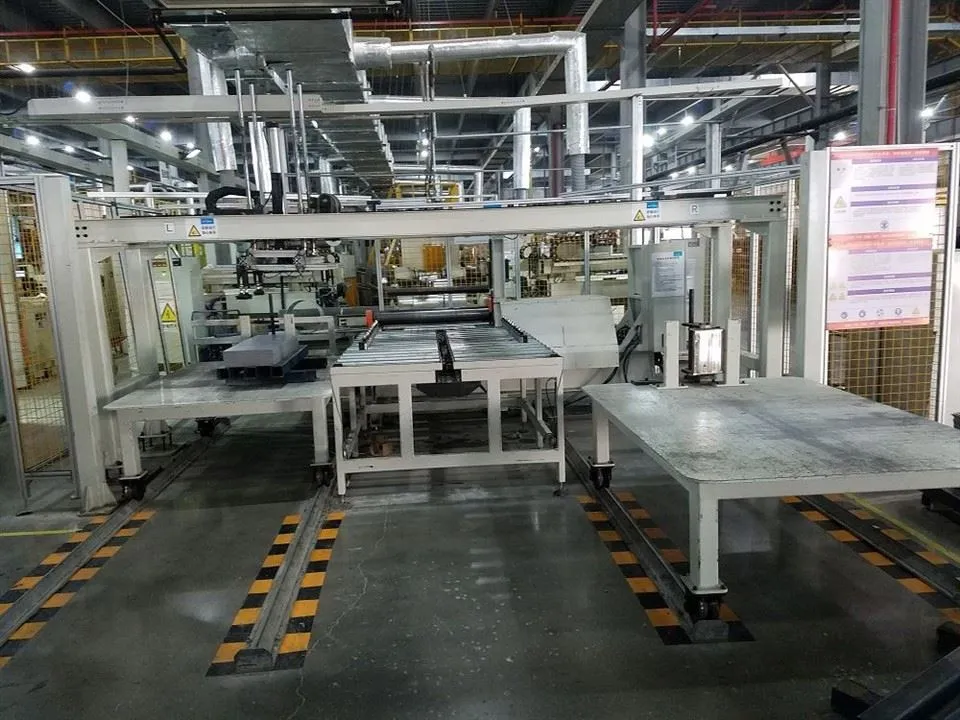

1.The equipment consists of a four-roller rolling machine, a feeding and unloading robot, a feeding centering platform, a loading platform and an electrical control system

2.Equipment efficiency: ≤40S

3.Material thickness : 1.2-2.0mm ; Workpiece length : 300-1800mm

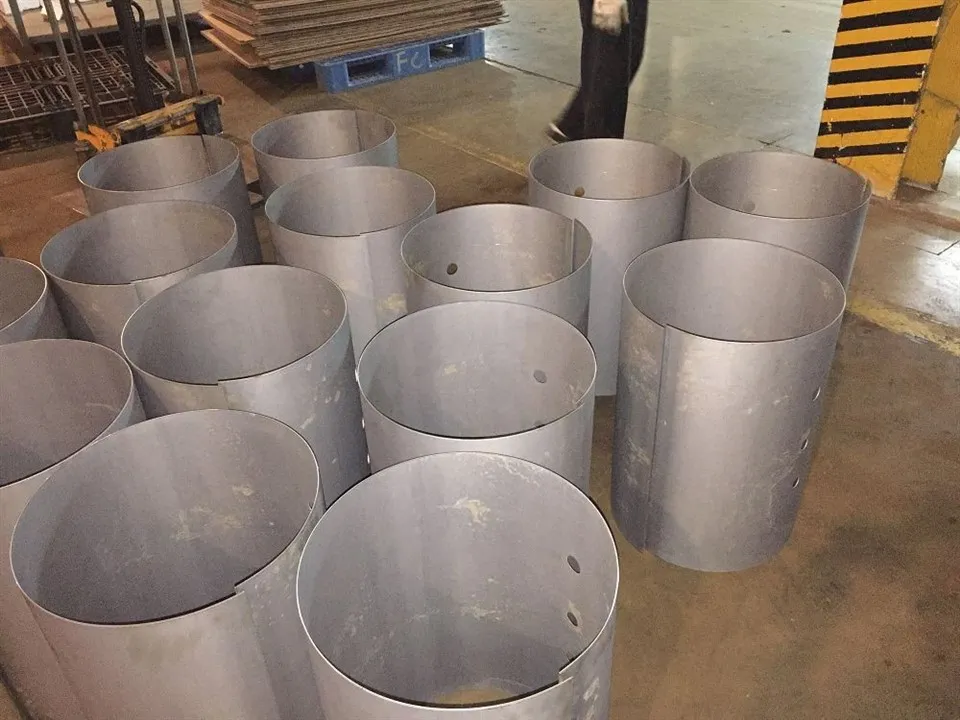

4.Equipment processing diameter : Φ300 - Φ500

5.Rolling speed: 8m/min; the rolling drive is servo stepless speed regulation

6.Roll size: opening size 50 mm; straight edge at the joint: ≤20-30 mm
