Equipment Introduction:

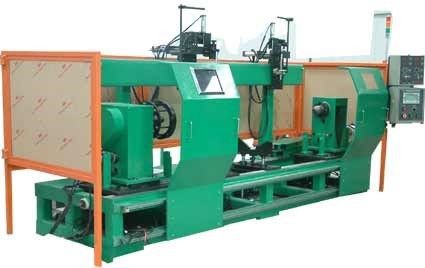

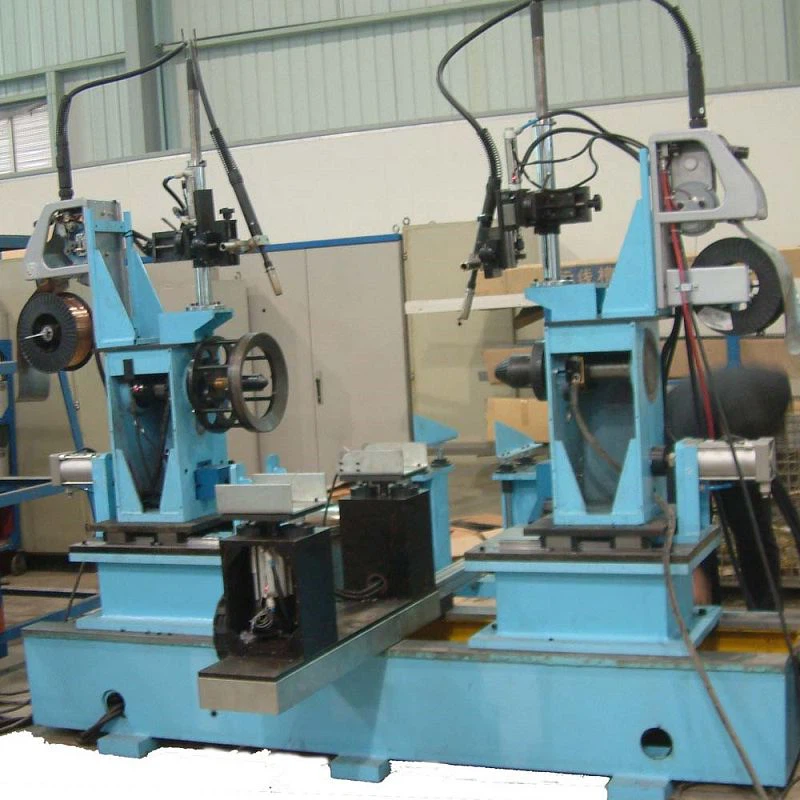

This equipment is mainly used for automatic welding of cylinder-end cover annular seams with a thickness of 1.5 to 2.2 mm . The workpiece is rotated and the welding gun is fixed. Double-head mixed gas shielded welding is adopted. Applicable materials: carbon steel, etc
Equipment technical parameters
1.Weldable workpiece diameter: Ф195 mm ~Ф450 mm
2.Pneumatic lifting stroke of welding gun: 100mm
3.Workpiece length: 400~ 1500mm
4.Manual fine-tuning distance of welding gun: ±30mm in X, Y, and Z directions
5.Spindle speed: 0.3 ～ 3 rpm
6.Applicable welding wire diameter : φ1.2 - φ1.6 mm
7.Manual adjustment of head and tailstock: 400mm
8.Pneumatic head and tailstock travel: 100mm
9.Recommended welding wire: φ 1. 2 mm
10.Welding accessories: welding wire, CO2 gas, Ar2 gas
▲ To enable me give you correct proposal for correct machines, please tell me following details:
A: Technical drawing/Size of product you want to manufacture
B: What's the capacity per shift/day?
